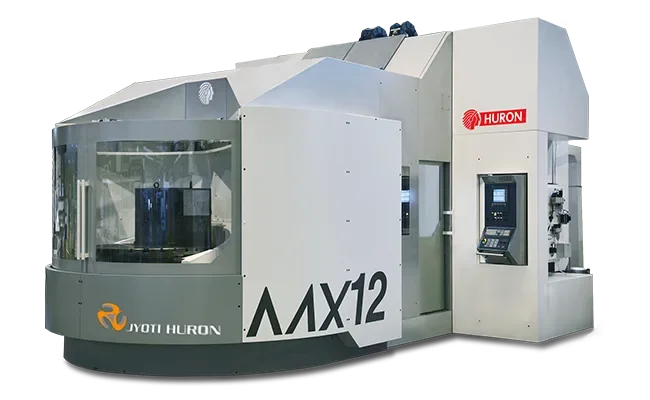

MX Series Mill-Turn Centers

The Jyoti MX Series Mill-Turn Centers represent the pinnacle of multifunction machining technology, enabling complete milling and turning operations from roughing to finishing in a single setup. These high-flexibility machines are specifically designed for aerospace, defense, and energy sector applications where complex, heavy workpieces demand exceptional precision and versatility.

Revolutionary Mobile Column Design: The MX Series features an extreme-rigid mobile column structure with a harmonically stable foundation. The innovative milling head with integrated torque motor swivels on a 45° plane, tilting from -45° to +180° for complete machining accessibility. The two-position head operates in both vertical and horizontal orientations, with an optional fork-type head available for negative angle machining.

Advanced Spindle Technology:

• High-Speed Electro-Spindle: Powerful motors delivering up to 29-43 kW power
• M Configuration: HSK 63A taper, 15000 rpm for high-speed milling
• MT Configuration: HSK 100A taper, 10000 rpm with full turning capability
• High Torque: 277-415 Nm for heavy material removal
• Characteristic Speed: 1000 rpm constant torque range

TRIM Technology C-Axis Table: The direct-driven torque motor rotary table delivers exceptional performance:

• M Versions: 30-65 rpm for precise positioning (Ø800 to Ø2200 work area)
• MT Versions: 120-500 rpm for turning operations
• Clamping Torque: Up to 7000 Nm for secure workholding
• Load Capacity: 2000 kg to 12000 kg across the range

High-Performance Automation:

• Twin Pallet System: Pallet change in less than 1 minute
• 60-Pocket Tool Magazine: Large capacity for complex operations
• Tool Specifications: Up to 650mm length, Ø250mm diameter, 25kg weight
• Rapid Feed Rates: Up to 60 m/min (40 m/min standard)
• Acceleration: Up to 4 m/s² on all axes

Precision Engineering: Built to VDI/DGQ 3441 standards with laser-calibrated axes:

• Linear Axis Uncertainty: 7 µm
• Linear Axis Repeatability: 4 µm
• Rotating Axis Uncertainty: 10 arc-seconds
• Rotating Axis Repeatability: 5 arc-seconds
• Roller-type LM guideways with linear glass scales

Machine Sizes Available: From compact MX 8 (1160x1000x900mm travels, 2000kg capacity) to massive MX 20 (3000x3100x1600mm travels, 12000kg capacity), the series covers all heavy machining requirements with constant accuracy across the entire working envelope.

Buy Jyoti MX Series Mill-Turn Centers in Dubai, UAE - Contact Indepco CNC for competitive pricing, full specifications, and expert consultation on these advanced multi-tasking solutions. Official Jyoti CNC distributor across the United Arab Emirates.
