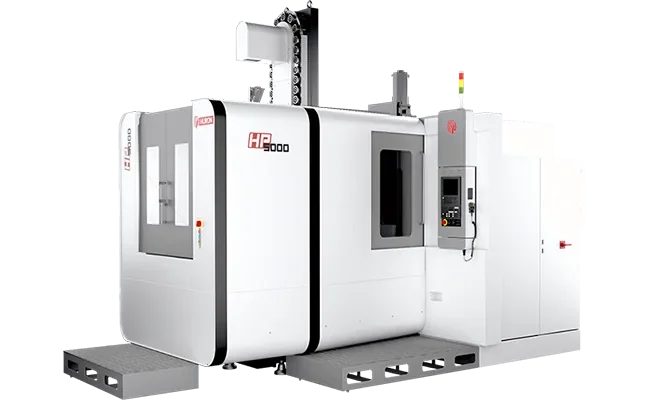

HP Series High Performance Horizontal Machining Centers

The Jyoti HP Series High Performance Horizontal Machining Centers represent the next generation of HMC technology, built on three key pillars: Rigidity, Accuracy, and High Dynamics. These innovative machines deliver exceptional productivity and reliability for demanding production environments in the UAE and Middle East manufacturing sectors.

Next-Generation HMC 2.0 Design: The HP Series features a revolutionary wide T-bed and step-up construction with triangular column design, providing unmatched rigidity and thermal stability. The 3-point levelling system ensures consistent precision across all machining operations.

Ultra-High Speed Performance:

• 60 m/min Rapid Traverse: Industry-leading axis speeds for minimum non-cutting time
• 30 m/min Cutting Feed: High material removal rates for maximum productivity
• High-Speed Electro-Spindles: 10000-12000 rpm for optimal cutting performance
• Linear Acceleration: Superior dynamics for complex contour machining

Precision TRIM Table Technology:

• 0.001° Minimum Indexing: Direct-driven table for ultimate positioning accuracy
• Eliminates Backlash: Zero-play design for repeatable multi-face machining
• Full C-Axis Capability: Continuous rotation for complex angular features

Ultra-Fast Automation:

• 8-15 Second Pallet Change: Minimizes idle time between operations
• Servo ATC System: With servo door for optimized cycle times
• 1.8-2.5 Second Tool Change: Industry-leading tool-to-tool speed
• 40-Tool Magazine: Large capacity for complex operations

Advanced Spindle Options:

• HP 4000: BT-40/HSK 63A, 12000 rpm, 10.5 kW electro-spindle
• HP 5000/6000: BT-50/HSK 100A, 10000 rpm, 26 kW electro-spindle
• High Torque Design: Optimized for both high-speed and heavy cutting

Precision Engineering: Built to VDI/DGQ 3441 standards with laser-calibrated axes:

• Positioning uncertainty: 0.01mm
• Repeatability: 0.005-0.007mm
• Precision roller-type LM guideways
• TPM-friendly design for minimal maintenance

Technical Highlights:

• Axis travels: 600-1100mm (X), 500-900mm (Y), 500-1000mm (Z)
• Table sizes: 400×400mm to 630×630mm
• Workpiece capacity: up to 1050mm diameter × 1350mm height
• Table load: 400-1100 kg
• Machine weights: 8300-22000 kg

Production Excellence: The HP Series sets new benchmarks in horizontal machining with its innovative design combining high dynamics, precision automation, and robust construction. Ideal for automotive, aerospace, die/mold, and general precision engineering applications.

Buy Jyoti HP Series High Performance HMC in Dubai, UAE - Contact Indepco CNC for competitive pricing, full specifications, and expert consultation on these next-generation horizontal machining solutions. Official Jyoti CNC distributor across the United Arab Emirates.
